AHKC Series Hall Effect Sensor

Home >> Products >> Power Sensor >> AHKC Series Hall Effect Sensor

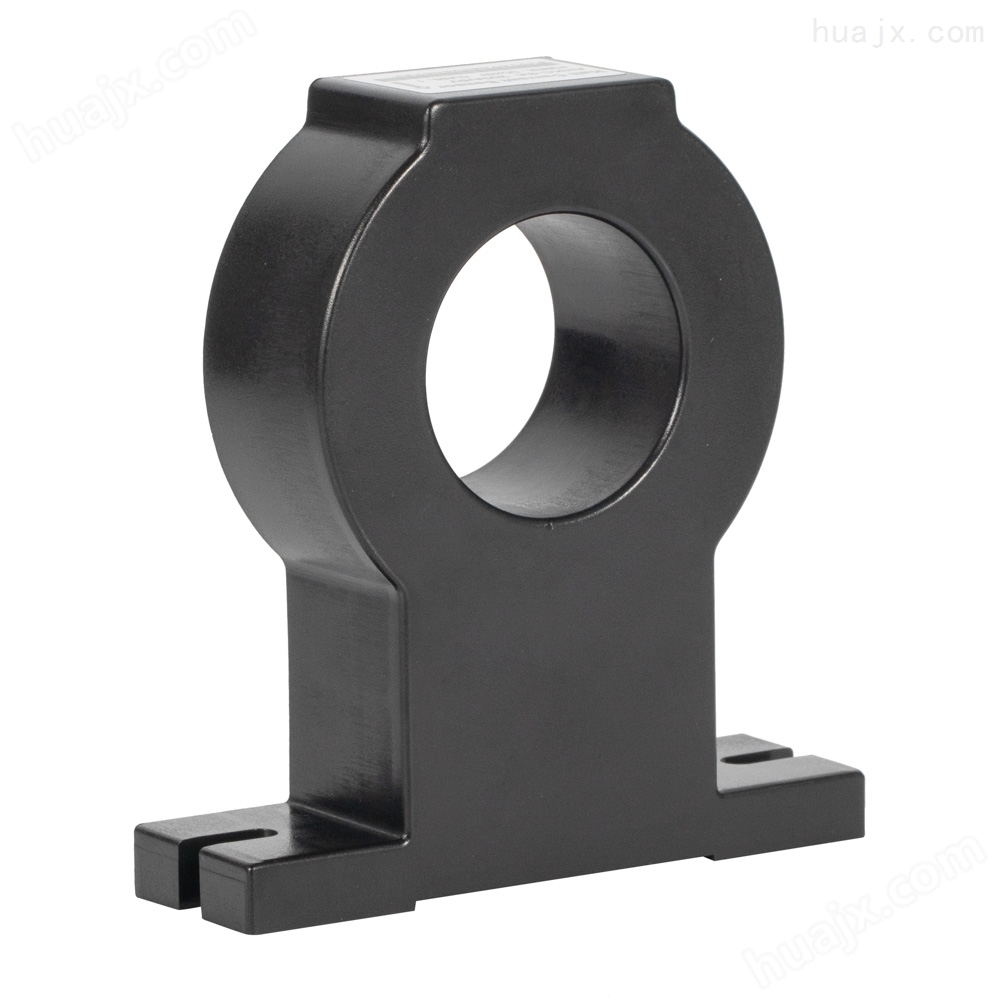

AHKC-EA Closed Hall Effect Current Sensor
AHKC-EA

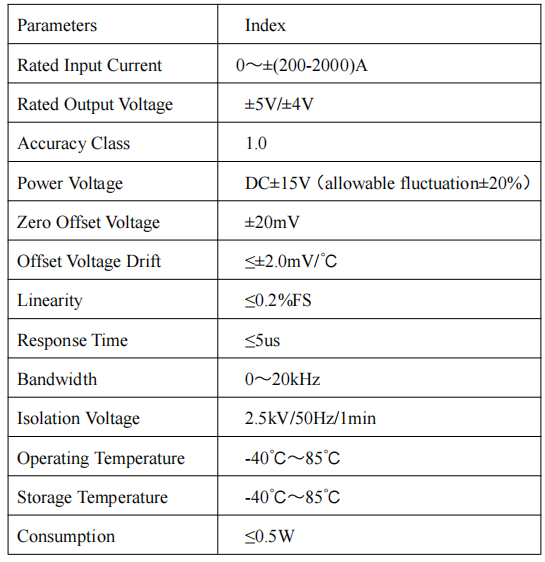

Measurement:

  • Rated Input Current:0～±(200-2000)A

  • Rated Output Voltage:±5V/±4V

  • Accuracy Class:1class

  • Power Voltage:DC±15V

Appearance:

  • Small package size

  • Low power consumption

  • Extended measuring range



Send Enquiry
Facebook LinkedIn Twitter YouTube Kakaotalk WhatsApp email

General


The primary and secondary of the AHKC-EA series current sensor are insulated and can be used to measure DC, AC and pulse currents.It is insulative between the primary and secondary grade of AHKC-EA series current sensor which can be used formeasuring direct current, alternating current and pulse current.




Dimension
