Home >> Products >> Power Sensor >> AHKC Series Hall Effect Sensor

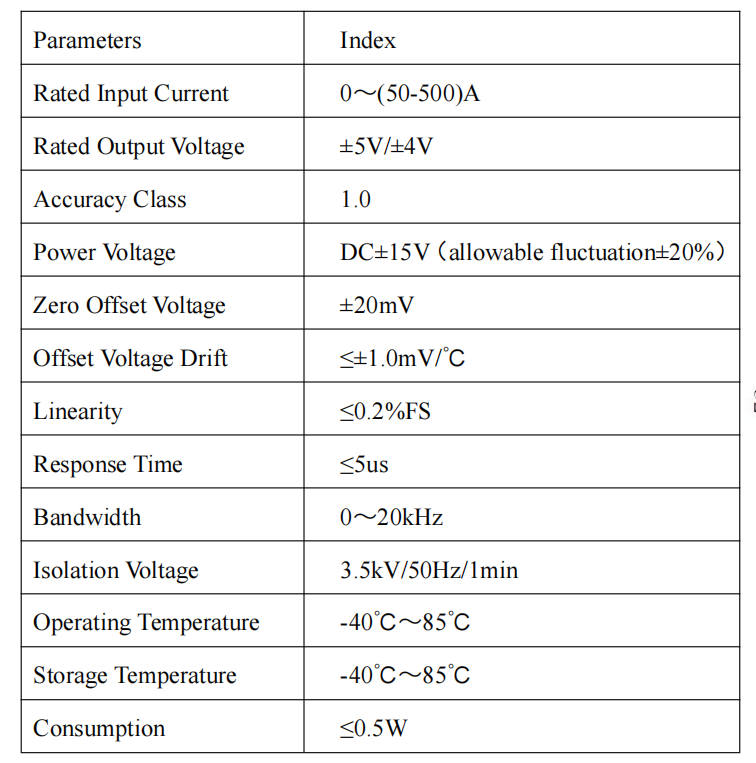

Measurement
Input Current:0～(50-500)A
Output:±5V/±4V
Accuracy Class:1class
Power Voltage:DC±15V
Appearance:
Small package size
Low power consumption
Extended measuring range
General
It is insulative between the primary and secondary grade of AHKC-E series current sensor which can be used for measuring direct current, alternating current and pulse current.The primary and secondary of the AHKC-E series current sensor are insulated and can be used to measure DC, AC and pulse currents.

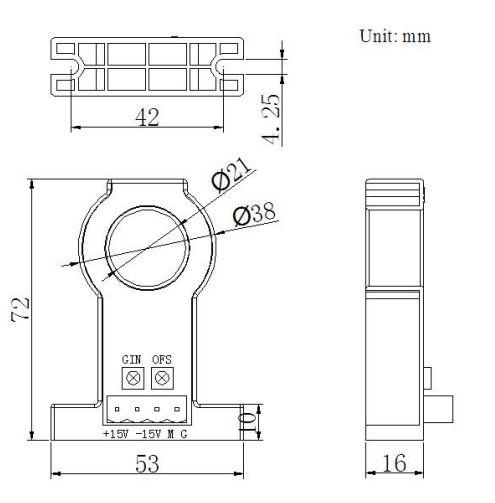

Dimension
