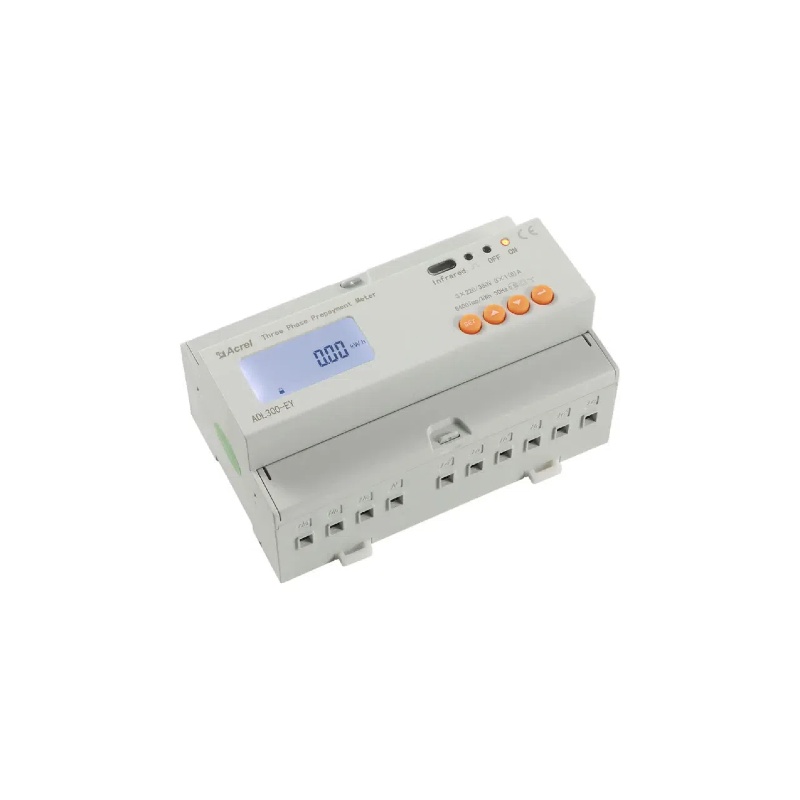

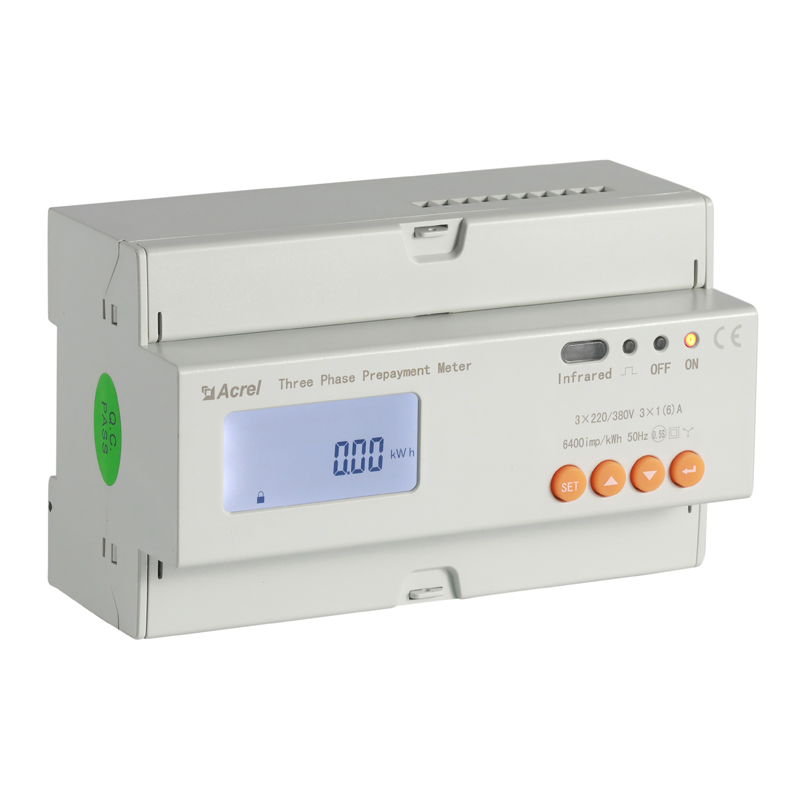

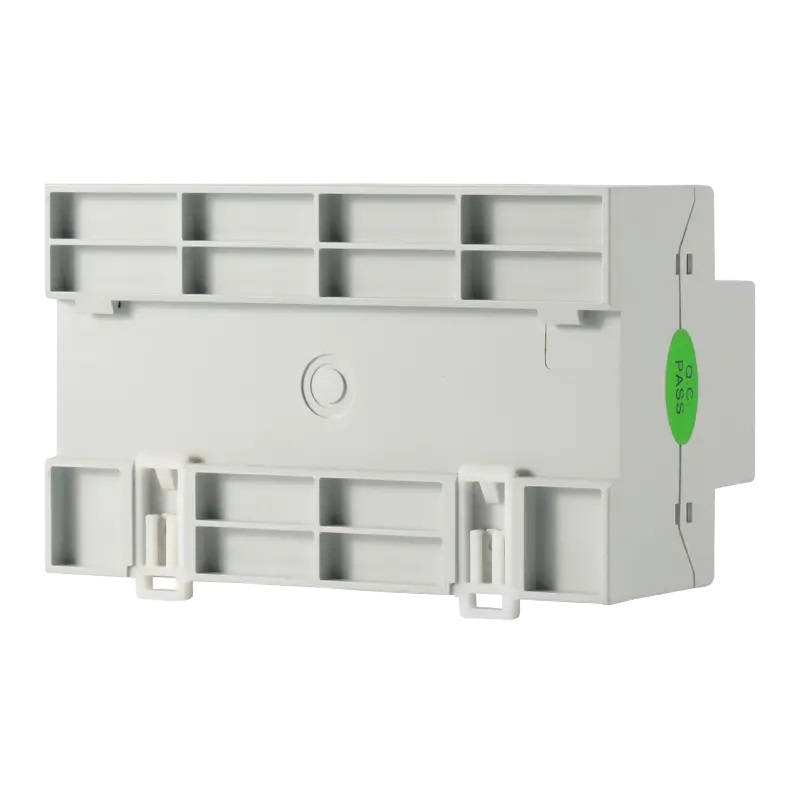

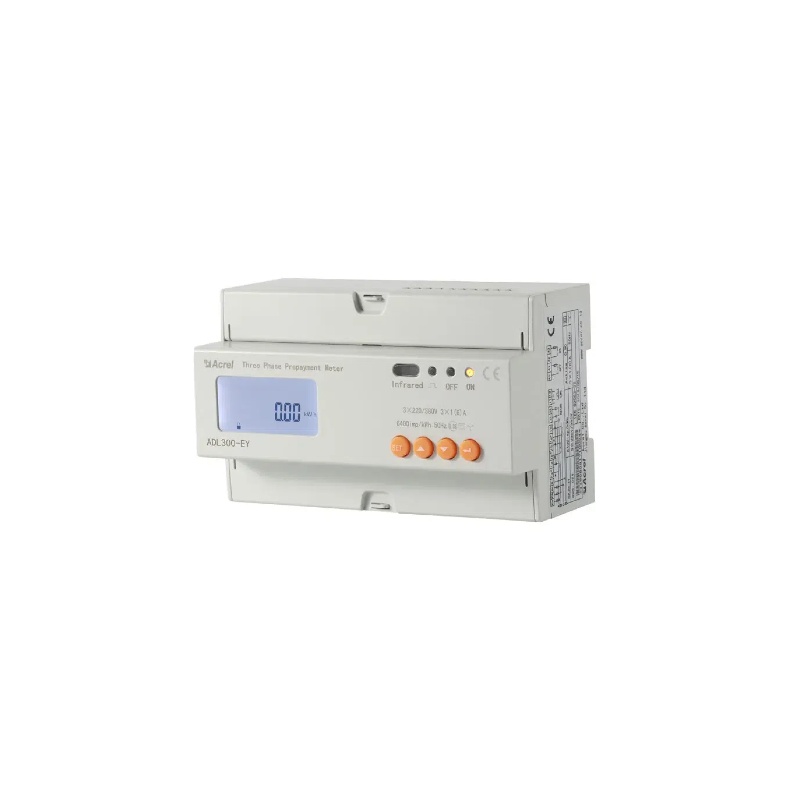

ADL300-EY Three-phase Prepaid&Postpaid Energy Meter

General

ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The meter has functions of RF card recharge,cooperate with circuit breaker to realize load cut-off and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

Functions

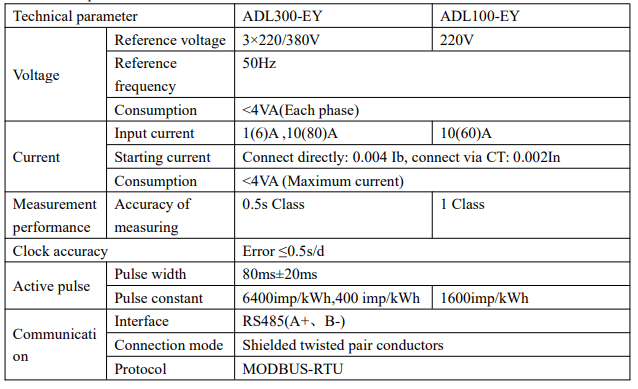

	Accuracy: kWh Class 0.5s Frequency: 50/60HZ（Optional）, Range：45~65HZ Auxiliary power supply(self supply): 220Vac（L-N）,range:154~264Vac Pulse output: Pulse output kWh Consumption<4VA(Each phase)

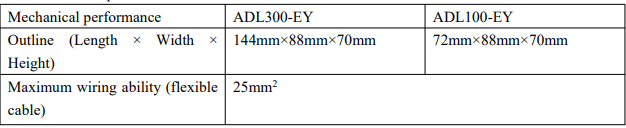

Installation: DIN 35mm Dimension(L*W*H)：144*88*70mm Active pulse: Constant: 6400imp/kWh,400imp/kWh Clock: ≤0.5s/d Starting current: Connect directly:0.04A,connect via CT:0.002A
