General

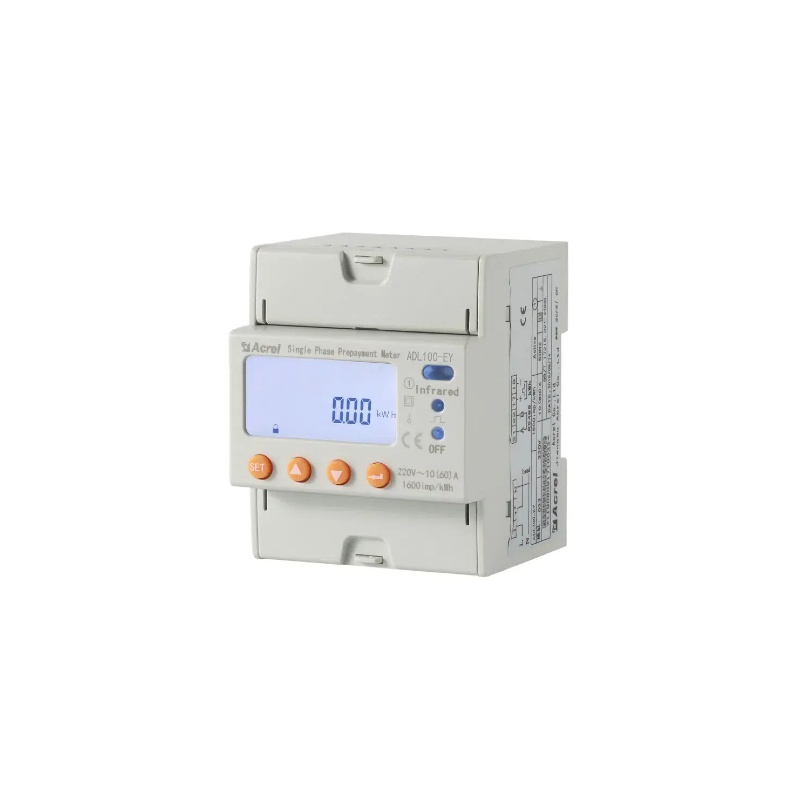

ADL100-EYNK single phase pre-paid meters with intro-control are used for calculating the single active energy respectively on the frequency of 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .It also supports remote recharge, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

Functions

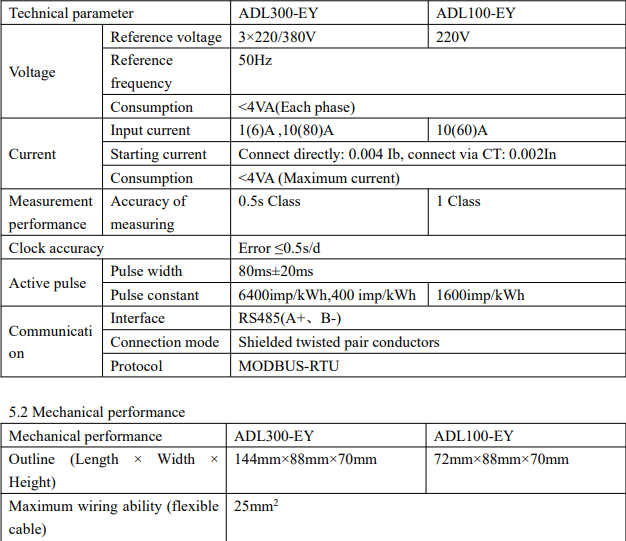

	Accuracy: kWh Class 1 Frequency 50/60HZ(Optional), Range: 45~65HZ Auxiliary power supply(self supply): 220Vac(L-N), range:154~264V AC Pulse output: Pulse output kWh Consumption: <4VA(Each phase)

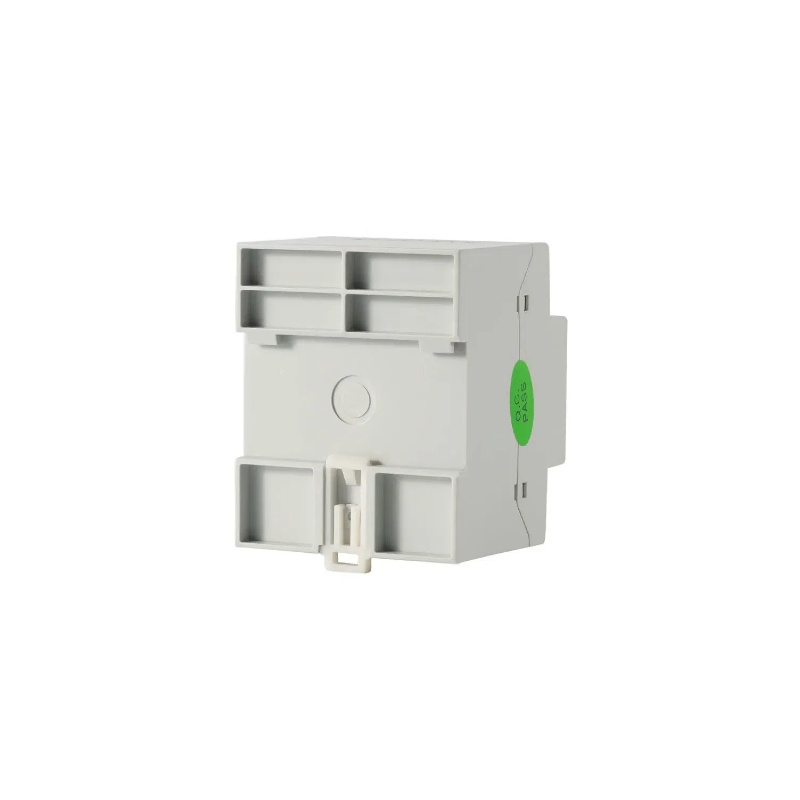

Installation: DIN 35mm Dimension(L*W*H): 72*88*70mm Active pulse: Constant: 6400imp/kWh,400imp/kWh Clock:M ≤0.5s/d Starting current: 0.04A
